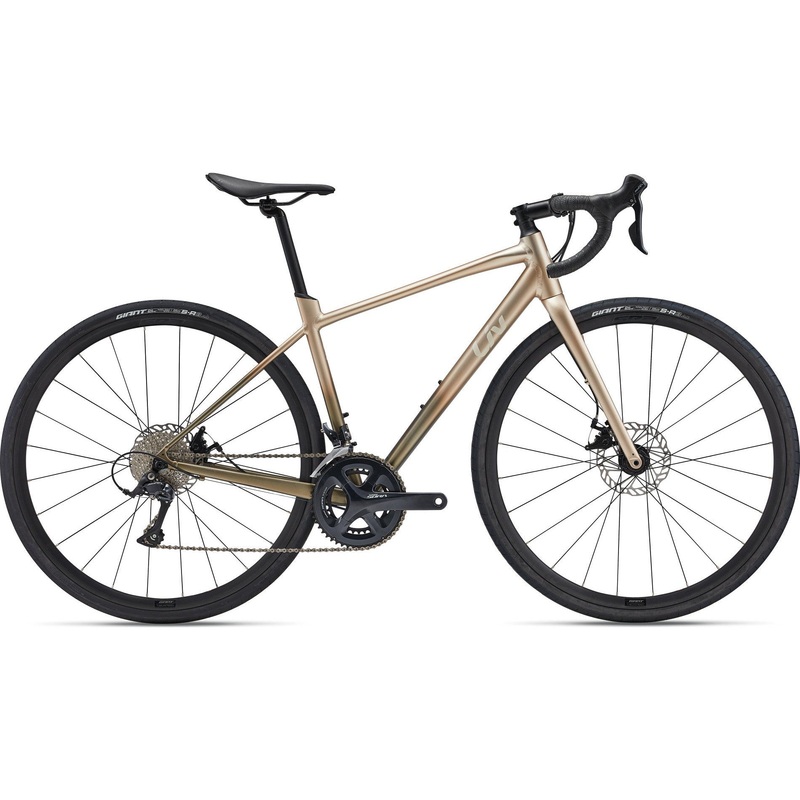

Avail AR 3 (2024) Gold X-Small

Avail AR 3 (2024) Gold X-Small

Conquer any terrain with the Liv Avail AR 3. Its smooth ride on pavement and agility on climbs make it the perfect choice for both urban exploration and off-road adventures. Experience confidence and adrenaline with each ride!ComfortThe lightweight ALUXX f

$147.00 $1,349.99
Color:
Size:
SKU: YA35969595 Category:

Conquer any terrain with the Liv Avail AR 3. Its smooth ride on pavement and agility on climbs make it the perfect choice for both urban exploration and off-road adventures. Experience confidence and adrenaline with each ride!

Comfort

The lightweight ALUXX frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.

Control

The 32c tires provide stability both on-road and off-road, and select models offer compatibility with tubeless tires up to 38c. With the OverDrive steerer and powerful disc brakes, you’ll enjoy precise handling and reliable stopping power for confident riding in any terrain.

Carrying Capacity

Equipped with frame mounts for racks and fenders, the Avail AR ensures you’re ready for longer journeys with all the necessary gear and protection.

Sizes XXS, XS, S, M, L
Colors Sandshell, Metallic Red
Frame ALUXX-grade aluminum, 12x142mm thru-axle, disc
Fork Advanced-grade composite, full-composite OverDrive steerer, 12x100mm, disc
Handlebar Liv Connect, 31.8mm XXS: 380mm, XS: 380mm, S: 400mm, M: 400mm, L: 420mm
Grips Liv All Condition
Stem Giant Sport XXS: 70mm, XS: 70mm, S: 80mm, M: 90mm, L: 90mm
Seatpost Giant Contact D-Fuse, composite, 14mm offset XXS: 350mm, XS: 350mm, S: 350mm, M: 350mm, L: 350mm
Saddle Liv Approach
Pedals Platform pedals
Shifters Shimano Sora
Front Derailleur Shimano Sora
Rear Derailleur Shimano Sora
Brakes Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers Shimano Sora
Cassette Shimano CS-HG400, 9-speed, 11×34
Chain KMC X9
Crankset Shimano Sora, 34/50 XXS: 165mm, XS: 165mm, S: 170mm, M: 170mm, L: 172.5mm
Bottom Bracket cartridge
Rims Giant S-R2 Disc wheelset
Hubs Giant alloy, 12mm thru-axle
Spokes stainless
Tires Giant S-R3 AC, 700x32c
Extras 38mm max tire size
Weight The most accurate way to determine any bikes weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
XS S M L
A SEAT TUBE LENGTH(inch) 16.1 17.5 18.9 20.3
B SEAT TUBE ANGLE 74.5 74.5 74.0 74.0
C TOP TUBE LENGTH(inch) 20.3 20.7 21.3 21.9
D HEAD TUBE LENGTH(inch) 4.6 5.4 6.2 7
E HEAD TUBE ANGLE 70.5 71.5 72.0 72.0
F FORK RAKE(inch) 2.1 2.1 2.1 2.1
G TRAIL(inch) 2.7 2.4 2.3 2.3
H WHEELBASE(inch) 39.3 39.4 39.6 40.2
I CHAIN STAY LENGTH(inch) 16.6 16.6 16.6 16.6
J BOTTOM BRACKET DROP(inch) 3.1 3.1 3.1 3.1
K STACK(inch) 21.2 22.1 22.9 23.7
L REACH(inch) 14.4 14.5 14.7 15.1
M STAND OVER HEIGHT(inch) 26.8 27.9 29 30.2
N HANDLEBAR WIDTH(inch) 15 15.7 15.7 16.5
O STEM LENGTH(inch) 2.8 3.1 3.5 3.5
P CRANK LENGTH(inch) 6.5 6.7 6.7 6.8
Q WHEEL SIZE 700C 700C 700C 700C
