Name: Jawbone A-Type Frame 58cm 29" - Sage Green
SKU: YA35975902
Availability: InStock

Sale!

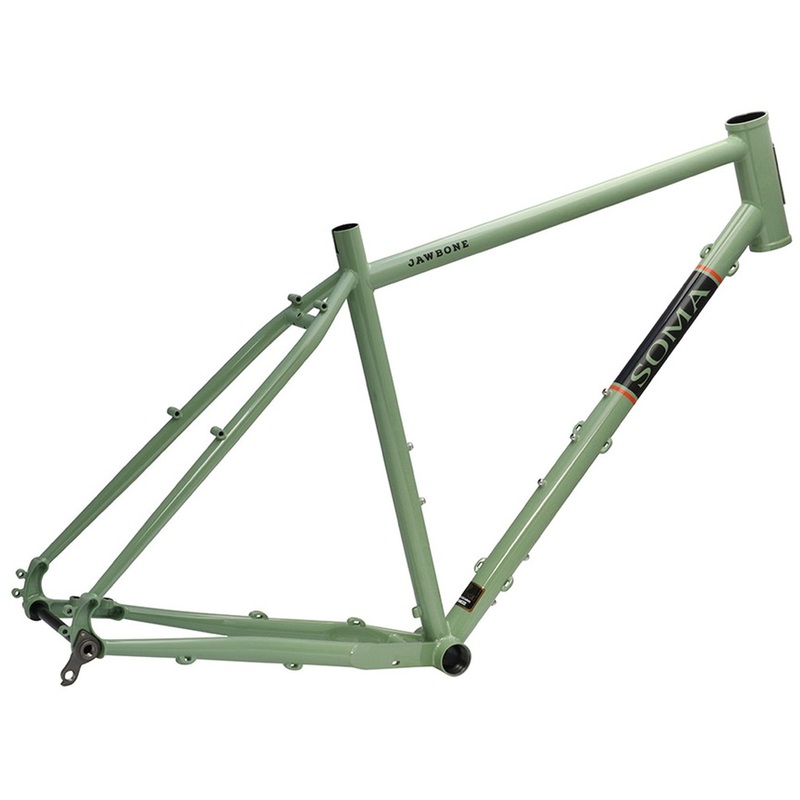

Jawbone A-Type Frame 58cm 29″ – Sage Green

The Jawbone A-Type frame is the perfect platform to build drop bar mountain touring and bike packing rig Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end Flat mount disc brake tabs on rear Investment cast vertical dropout with replaceabl

$146.00 $795.95

The Jawbone A-Type frame is the perfect platform to build drop bar mountain touring and bike packing rig

Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end

Flat mount disc brake tabs on rear

Investment cast vertical dropout with replaceable stainless steel hanger. 12 x 142mm thru-axle

Front derailleur compatible (bottom pull)

Headset for optional 1-1/8 inch matching fork: SHIS: ZS44/28.6 | ZS44/30. If running a tapered steerer fork, get an EC44 lower cup

Rear rack and fender eyelets

Two sets of bottle cage bosses; one set of cargo cage bosses on downtube

44mm headtube: Fits 1-1/8 inch steerer tubes and tapered steerer tubes with a headset swap

27.2mm post size/28.6mm frt. der. size/29.8mm seat collar, 73mm bottom bracket (English threads)

Tire Width Range: 27.5 x 47mm to 2.5 / 700c x 38mm to 29 x 2.25

For matching fork please considerYC4022

TECH SPECS

model	Jawbone A-Type
size	58cm
seat tube (c-t)	545mm
top tube (effective, c-c)	583mm
chainstay	445mm
head angle	71 deg
seat angle	73 deg
bottom bracket	73mm
seatpost	27.2mm
front derail	28.6mm
wheel size	29″
dropout	12x142mm TA
color	sage green
