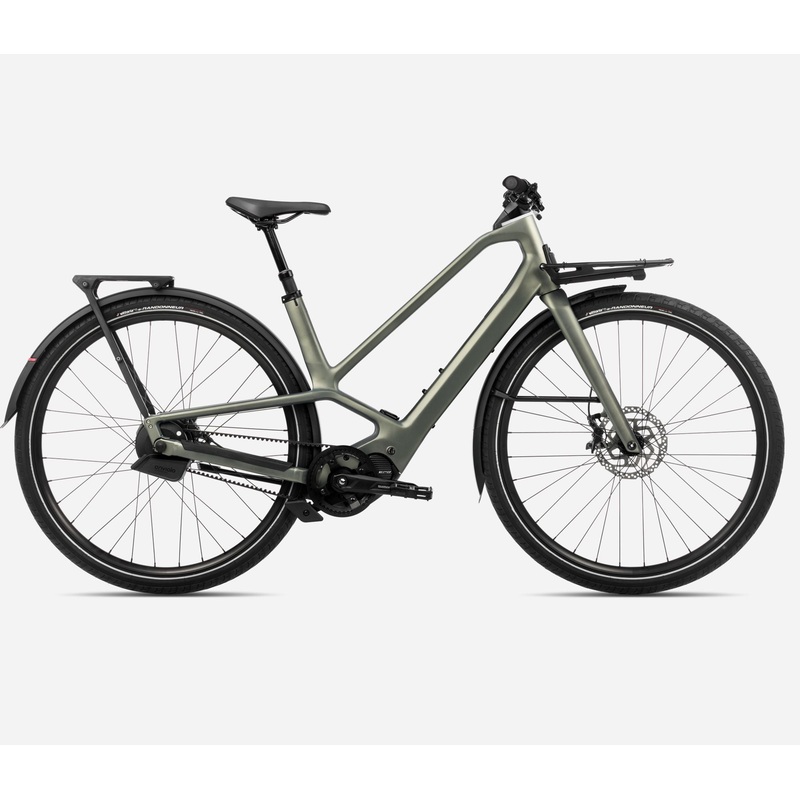

Diem 10, the powerful urban ebike, slots into your routine, making the A to B even easier thanks to Enviolos maintenance free, automatic shifting and belt drive.
BUILD KIT:
- Frame: Orbea Diem Hydro High Polished 2024, Flex Tech, 135×9 / 142×12, headset routing, custom kickstand, Orbea Urban cockpit and equipment compatible
- Fork: Orbea Diem carbon fork, full carbon, 1″ 1/8 – 1″ 1/5, post mount disc mount, thru axle 12x100mm, thread M12x1, long mudguards compatible
- Steerer Tube: FSA 1-1/2″ Integrated Aluminium Cup
- Battery: Orbea Internal 630Wh
- Motor: Shimano EP801
- Charger: Orbea 2nd Generation eBike Smart charger 42V/2-4A
- Remote: EN600-L
- Chainring: Gates CDX 46t with chainguard
- Crank: Shimano Steps EM600
- Cassette: Gates CDX 34t for Enviolo
- Rear Derailleur: Enviolo Automatiq, BT
- Chain: Gates CDX Belt
- Handlebar: Orbea Urban, integrated light, rise 0, width 720
- Brakes: Shimano Cues U8020 Hydraulic Disc
- Wheels: Alloy, tubeless, 25c, 32H
- Tyres: Vittoria e-Randonneur 50-622, reflective band
- Pedals: VP-537 Black
- Front Carrier: Orbea RF-01 Alloy, max 10kg with Aluminium Front Basket with net
- Rear Carrier: Orbea RR-01 Alloy, with Mik & Mik Side and Ortlieb QL3.1 system, max 20kg
- Mudguard: Curana Apollo Orbit 60mm
- Front Position Light: Orbea integrated, USB-C charging point
- Front Light: Supernova Starstream Pro, High Beam
- Rear Light: Orbea Fender integrated, with alert light
- Chainguard: Gates CDS
- Quick Stand: Orbea Diem Integrated
- Bell: Knog OI Classic
- Seatpost: OC Mountain Control MC22, 31.6mm, Dropper
- Seatpost Lever: Shimano SL-MT500
- Saddle: Selle Royal Vivo Ergo
SIZING: Orbea recommends the following sizes based on rider height:
- SM: 4’11” – 5’9″
- MD: 5’3″ – 6’1″
- LG: 5’7″ – 6’5″
- XL: 5’11” – 6’9″
