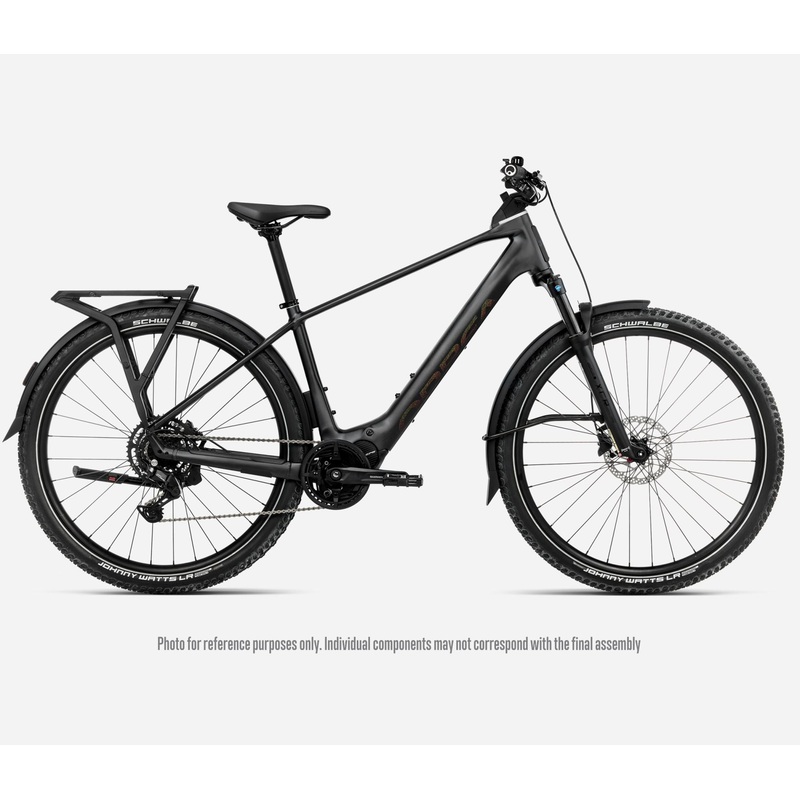

Kemen Adv is equally at home cutting through the city or exploring the hills. The powerful motor and battery open up a world of possibilities, and our wide range of accessories make it simple to configure Kemen for whatever your day holds.
BUILD KIT:
- Frame: Orbea Kemen Top bar 2026, Hydroformed Alloy 6061, High Polished, OLD 148 RD/IGH, Orbea cockpit and equipment ecosystem, w/ Kickstand, Trailer compatible
- Fork: SR Suntour XCR34 100mm Coil Q15x110
- Steerer tube: FSA 1-1/2″ Integrated Aluminium Cup
- Battery: Orbea Internal 540Wh
- Motor: Shimano EP600
- Display: Shimano EN500
- Charger: Orbea 2nd Generation eBike Smart charger 42V/2-4A
- Chainring: Alloy 40t w/ chainguard
- Crank: Shimano Steps EM600
- Shifters: Shimano Cues SL-U4000
- Cassette: Shimano CS-LG300 11-46t 9-Speed
- Rear derailleur: Shimano Cues U4000 GS Shadow
- Chain: KMC eGlide
- Handlebar: Orbea Urban, Integrated light, Backsweep 9, Rise 50, Width 760
- Brakes: Shimano MT200 Hydraulic Disc
- Brakes Configuration: N/A
- Wheels: Alloy, 26c, 32H
- Tyres: Schwalbe Johnny Watts LR, 60-622, Reflective Tape
- Pedals: VP-892 Black with reflectors
- Rear carrier: Orbea RR-02 Alloy, w/ MIK HD and MIK Side and Ortlieb QL3.1 system, Max. 30Kg
- Mudguard: Curana Apollo Orbit 70mm
- Front Position Light: Orbea integrated, USB-C charging point
- Front light: Supernova Starstream Pure, Low Beam
- Rear light: Supernova TL3 Z
- Quick stand: Massload rear adjustable
- Seatpost: Alloy, 31.6mm, Setback 0
- Saddle: Selle Royal Vivo Ergo
SIZING: Orbea recommends the following sizes based on rider height
- SM: 5’0″ – 5’8″
- MD: 5’5″ – 6’0″
- LG: 5’9″ – 6’5″
- XL: 6’2″ – 6’9″
