AROUND THE CITY WITH STYLISH EASE

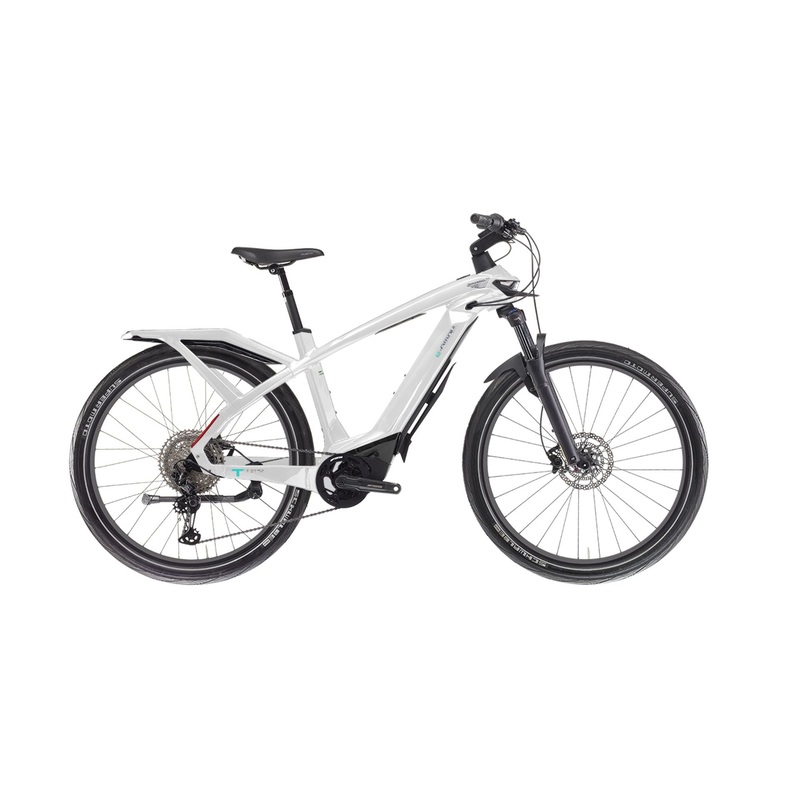

The e-Omnia T-Type is a utilitarian e-bike designed to be the first choice for fitness, commuting, or just riding for pleasure.
With front suspension and some intelligent design features, it can handle anything from smooth asphalt to light gravel.

The T-Type is available with standard frame and also with step-through frame, with both frames engineered using gravity casting technology for frame stiffness and a sleek finish.

E-OMNIA T-TYPE: SAFETY IS VISIBLE

The e-Omnia platform harnesses pioneering technology to improve the users experience. Integrated lights at the front, sider and rear are a key feature of e-Omnia T-Type, allowing the rider to see and be seen everywhere. The integrated front and rear lights put out 40 Lux, for an impressive visibility-range of 100 meters, and visibility to others at 500 meters.

BUILD KIT:

• Motor: Bosch Performance Line CX 250W 85Nm
• Battery: Bosch Powertube 625Wh
• Frame: e-Omnia T-Type Alloy, 1.5″ tapered HT, 12x148mm thru axle, chainguard compatible, PM160mm, custom rear carrier integrated in the frame design, kickstand ready, sizes: 43, 48, 53cm (MD,LG,XL), UHD compatible hanger
• Fork: SR Suntour XCM34 Boost NLO DS 29″ travel 120mm
• Shifters: Shimano Deore SL-M6100-R 12sp
• Rear Derailleur: Shimano XT RD-M8100 SGS 12sp Shadow Plus Design
• Crankset: FSAalloy crank, crank length: 170mm, ISIS BB axle, w/Fsa MegaTooth 38T chainring
• Bottom Bracket: Included with motor unit
• Chain: Shimano Deore CN-M6100 12sp
• Brakes: Shimano BR-MT410, Resin pad
• Rotor: Shimano SM-RT10 CL 180mm front & rear, Center Lock
• Wheels: Velomann Ebike Kargo 28″ – 622x25c
• Rear Hub:Shimano FH-MT410-B for Center Lock, 12x148mm BOOST, 12sp Shimano Microspline body
• Front Hub: Shimano HB-MT400-B for Center Lock, 15x110mm TA
• Tire: Schwalbe Supermoto 29×2.4 62-622
• Stem: Velomann TDS-666-8 adjustable 35/31.8mm, length: 95mm w/Kiox display mount
• Handlebar: Velomann Wien diam. 31.8mm, width: 680mm, rise 20mm, backsweep 15
• Grips / Extensions: Herrmans Luna Lock
• Seatpost: integrated
• Saddle: Velomann A037HR0 Gent, steel rail, 285x187mm
• Mudguards: Bianchi custom mudguards
• Kickstand: Velomann R78 KING EVO REAR max 35kg
• Rear Carrier: custom rear carrier integrated into the frame design
• Front Light:Integrated custom front and side light made w/Spanninga
• Rear Light: Integrated custom rear and side light made w/Spanninga
