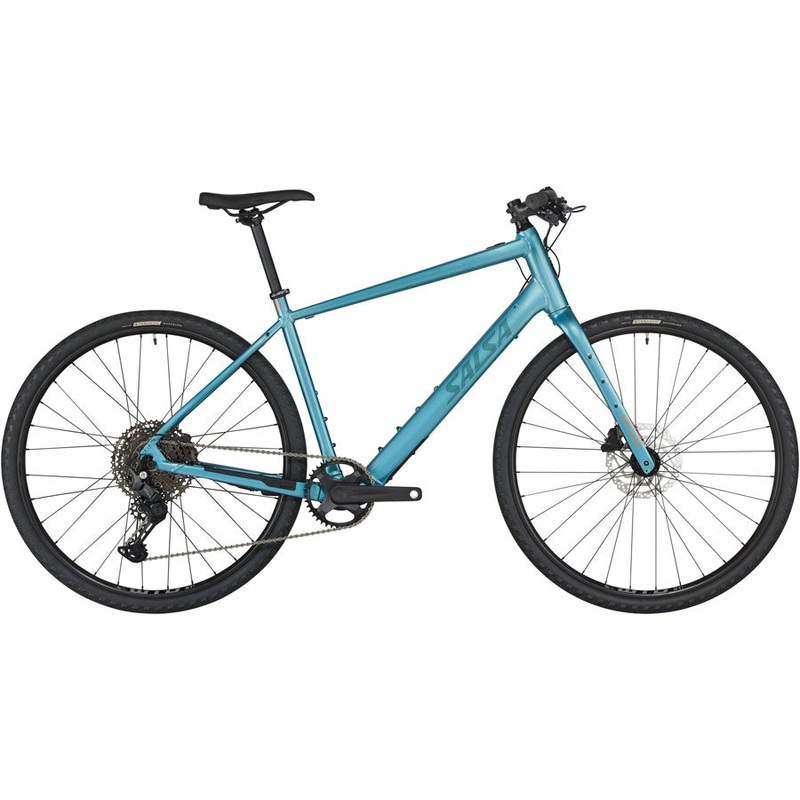

Confluence is Salsas light electric gravel bike. Its made for the people who want to squeeze more adventure into each day. Chase gravel with 40 Nm assist, on-bike cargo features for any mission, and geometry designed for comfort and stability all in a bike that looks like, well, a bike. Confluence is where capability meets convenience.

• 6061-T6 alloy frame with carbon fork
• Mahle X35+ Class 1 (20mph/32kph assist) hub-drive system
• 40Nm max torque
• 250Wh internal battery in downtube
• Capable of up to 458Wh with MAHLE Range Extender battery (sold separately)
• iWOC One compact remote top tube controller
• Massive 700c x 50mm tire clearance (max 42mm tire clearance with fenders)
• On-bike cargo features including rack mounts and Three-Pack mounts on fork
• Mahle X35 system is UL2849 certified, Mahle X35 battery is UL2271 certified
• Meets UL 2849, and UL 2271 certification

BUILD KIT:

• Frame: Confluence
• Fork: Confluence Carbon Deluxe
• Drive Unit: MAHLE X35+
• E-Bike Classification: Class 1
• Drive Type: Hub-Drive
• Max Assist Speed: 20mph/32kph
• Motor Torque: 40Nm
• Range Estimate: 40 miles
• Assist Levels: 3
• Battery Capacity: 250Wh
• Battery Type: Li-ion, removable for service
• Estimated Charge Time: 3 hours
• Charger Included: Yes
• Rear Derailleur: Shimano CUES U6000
• Cassette: Shimano CUES, 11-speed, 1150t
• Chain: Shimano LG500
• Crankset: FSA Omega Megaexo, 40t
• Shifter: Shimano CUES U6000-11R
• Brake Levers: Shimano MT201
• Brake Caliper: Shimano UR300
• Rotors: Shimano RT26, 180mm front, 160mm rear, 6-bolt
• Bottom Bracket: FSA BB-4000
• Headset: FSA
• Stem: Salsa Guide
• Handlebar: Salsa Salt Flat
• Grips: Velo VLG-311D2
• Seatpost: Promax SP-2016
• Saddle: WTB Volt
• Front Hub: WTB Serra
• Rear Hub: MAHLE X35+
• Spokes: Straight gauge, black
• Rims: WTB ST i23, 32h
• Tires: Teravail Washburn 700c x 42mm, Durable casing, wire bead

SIZING: Salsa recommends the following sizes based on rider height:

• XS : 4’8″ – 4’11”
• SM : 5’0″ – 5’4″
• MD : 5’4″ – 5’8″
• LG : 5’8″ – 6’0″
• XL : 6’0″ – 6’4″
