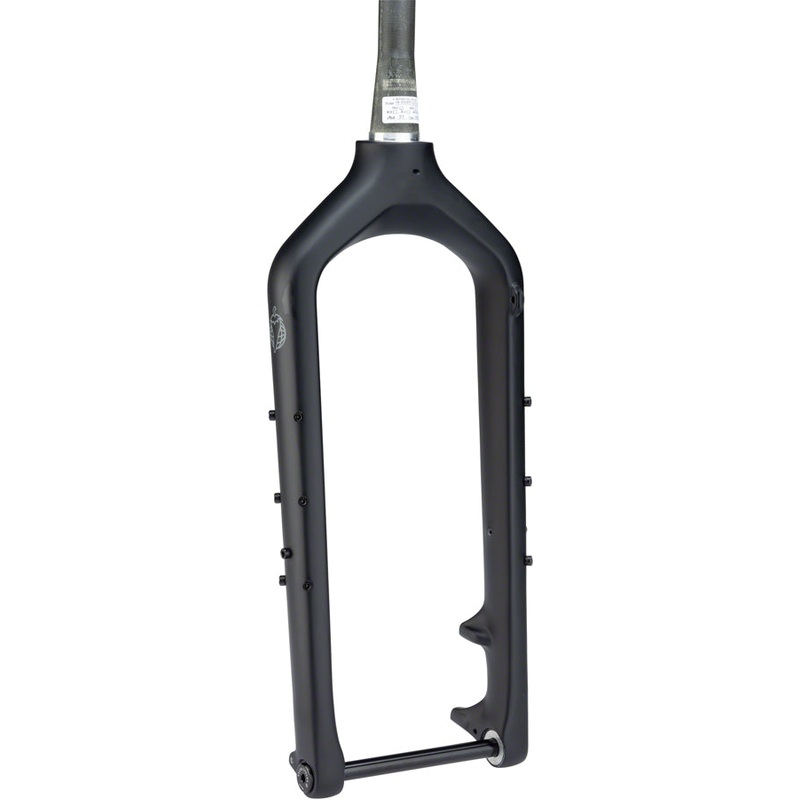

The Kingpin Deluxe fork is perfect for fat bike expeditions, keeping you nimble, even when fully loaded. Dual Three-Pack mounts on each leg let you attach water bottles or Anything Cages, and mid-blade mounts fit low rider racks for panniers. Or ditch the gear and hit the trails with an ultra-light and responsive fork.

• High modulus carbon fiber construction
• Tapered 1-1/8 to 1- steerer tube
• 160 minimum rotor size; 203mm maximum rotor size
• Dual sets of Three-Pack mounts on each fork leg for Anything Cages or water bottles
• Mid-blade mounts for low rider racks
• Internal routing for 150mm spaced dynamo hubs
• Maximum Tire / Rim sizes: 26 x 5, 27.5 x 4.0, 29 x 3.0
• 150 x 15 mm thru axle included
• Front Axle Size: 15 x 198L, TP=1.5, TL=9
• Steerer Type: Tapered
• Defined Color: Black
• S.H.I.S. Stem Clamp Diameter: 28.6
• Steerer Tube Length (mm): 260
• Wheel Size: 26″ Fat
• Wheel Size: 27.5″ Fat
• Wheel Size: 29+
• Axle to Crown Length: 483
• Offset: 51
• Brake Mount (Fork): Post Mount 160
• Crown Race: 40
• Color: Matte Carbon
• Front Axle: 15mm Thru x 150mm
• Material: Carbon
